Rule Visualizer

An admin UI to browse rulebooks, dry-run them against facts, and watch rules execute live.

Rule Visualizer

The Rule Visualizer is an admin UI for RuleBox: a dashboard of your declared rulebooks, a chain visualizer showing real execution order, a dry-run playground, metrics/stats, and a live SSE tracker. It's modeled on cbSecurity's own visualizer - off by default, and not secured by RuleBox itself.

Enabling it

moduleSettings = {
	rulebox = {
		visualizer = {
			enabled = true
		}
	}
}

That's it - enabled is the only thing you strictly need. Once on, the UI lives at /rulebox-visualizer (and friends), via the module's this.entryPoint = "rulebox-visualizer".

While enabled is false (the default), every visualizer route 404s, and - just as importantly - RuleBox does no extra work at all: no metrics are persisted, and nothing is broadcast. Flipping it on is the only thing that turns on the (small) per-rule-evaluation bookkeeping cost.

RuleBox does not secure these routes for you. Once you enable the visualizer, wrap /rulebox-visualizer with a cbSecurity rule (or your own auth interceptor) the same way you would any other admin UI.

Opening the UI

With enabled = true, browse to your app's /rulebox-visualizer entry point:

The left sidebar links between the screens. The footer shows the metrics store in use and confirms the visualizer is enabled.

The UI itself is Bootstrap 5, Alpine.js, and Phosphor Icons, loaded from a CDN - there's nothing to build or bundle. The screenshots below use the rulebooks in this module's own test-harness/config/rulebox folder.

Every CDN asset is pinned to an exact version (Bootstrap 5.3.3, Alpine.js 3.14.3, Phosphor Icons 2.1.1) and loaded with a Subresource Integrity (integrity="sha384-...") hash, so the browser refuses a file that has been altered. SRI covers the stylesheet and script files themselves, not the icon font files that Phosphor's CSS fetches by relative URL. The admin pages also need to reach the CDNs, and Alpine.js evaluates expressions with new Function, so a strict Content-Security-Policy (no unsafe-eval) will block the UI.

Screens

A one-minute tour of every screen, including rule health, errors and stack traces:

Click any screenshot to enlarge it:

Dashboard

Every declared rulebook (from moduleSettings.rulebox.rulebooks and/or your convention folder - see the "Externalized Rule Definitions" guide), with its description, rule count, evaluation counts by state, error rate, average duration, and a recent-activity feed on the right. A rulebook that fails to load (a bad file path, an unregistered action) is flagged with a red marker, like needsaction above, instead of taking the whole page down.

Two panels above the table answer "which rules need attention?" across every declared rulebook:

• Problem rules: the five rules with the highest error rate (ties go to the most failures, then the most recent one), each with its last error. Rules that never failed are left out, so an empty panel means nothing has failed.
• Slowest rules: the five rules with the highest average duration, with their maximum.

Click a rule to open its rulebook's chain. See Rule health for how the numbers are counted.

Rule Visualizer

A chosen rulebook's real execution chain, in the order the rules actually run, under the rulebook's description. Each row shows:

• the rule's priority (P20, P10, P0) and its description, when it has one
• a stops chain marker for rules that call stop()
• the rule's evaluation count, average and maximum duration, error rate, and outcomes by state (EXECUTED, SKIPPED, STOPPED, FAILED)
• the rule's last error (type, message and time), when it has failed

Use the dropdown to switch rulebooks, or Dry Run to jump to the playground with this rulebook preselected.

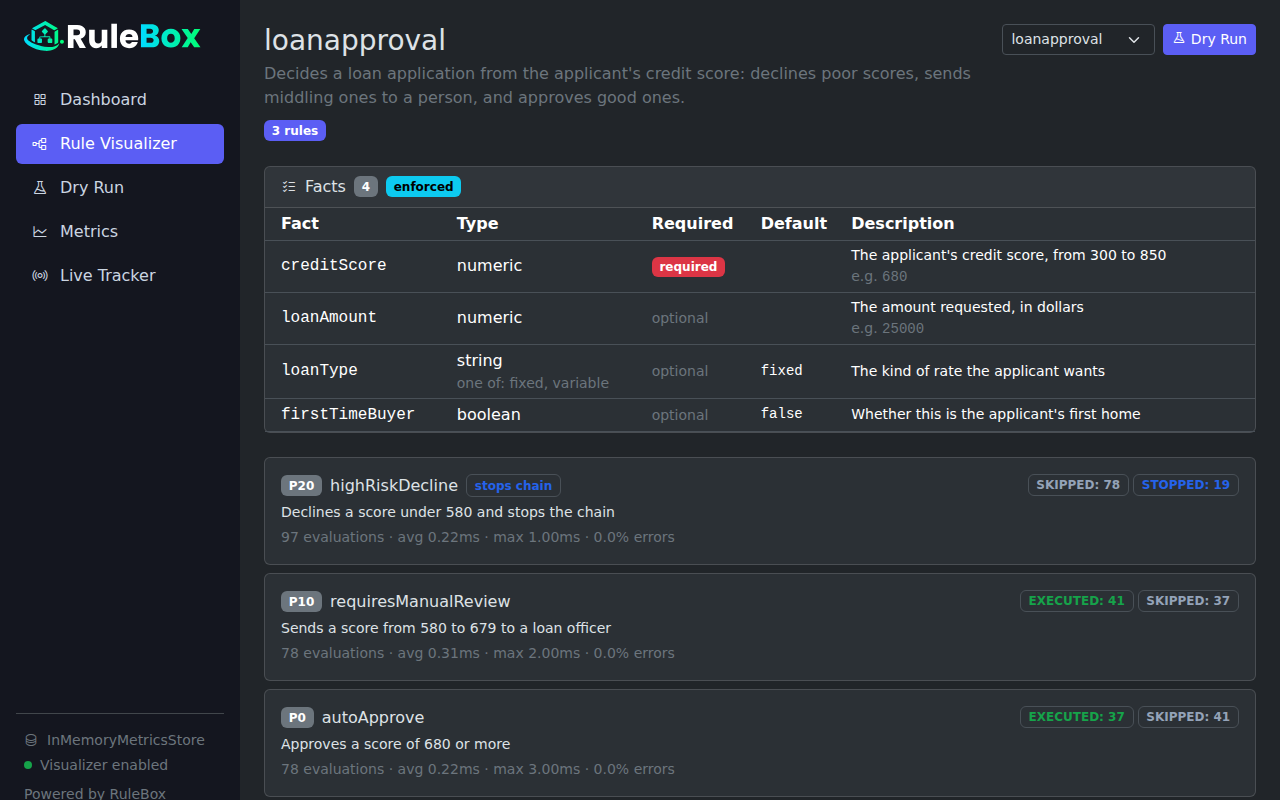

A rulebook that declares its facts gets a Facts panel above the chain: each fact's name, type (and allowed values), whether it is required, its default, description and example. A badge says whether the rulebook only describes its facts (described), checks them on every run (enforced), or also rejects undeclared facts (strict).

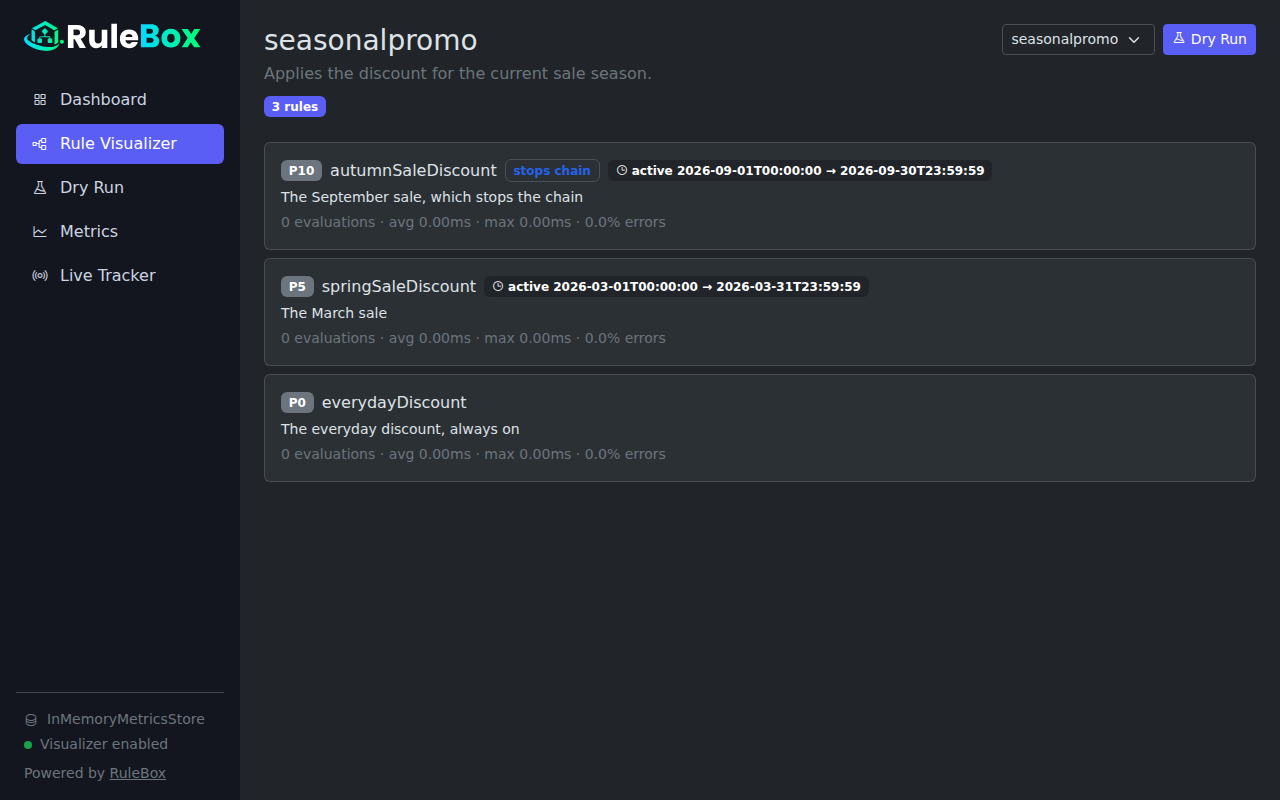

Rules with an active window (activeFrom / activeUntil) show it inline.

Dry Run

Pick a rulebook, enter facts, and press Run dry run. The result lists every rule in order, with its description, and whether it would execute for those facts, without running any action. It is backed by RuleBook.dryRun(), so nothing is recorded in your metrics.

When the rulebook declares its facts, the screen builds a form from them: a field per fact that fits its type (a number input, a true/false or allowed-values picker, a date picker, a text box, or JSON for structs and arrays), a * on required facts, and the description under each field. Fields start with the fact's default, or else its example; leave a field blank to leave the fact out. Form and JSON switch between the form and the raw facts, keeping both in step. A rulebook that declares no facts takes JSON only.

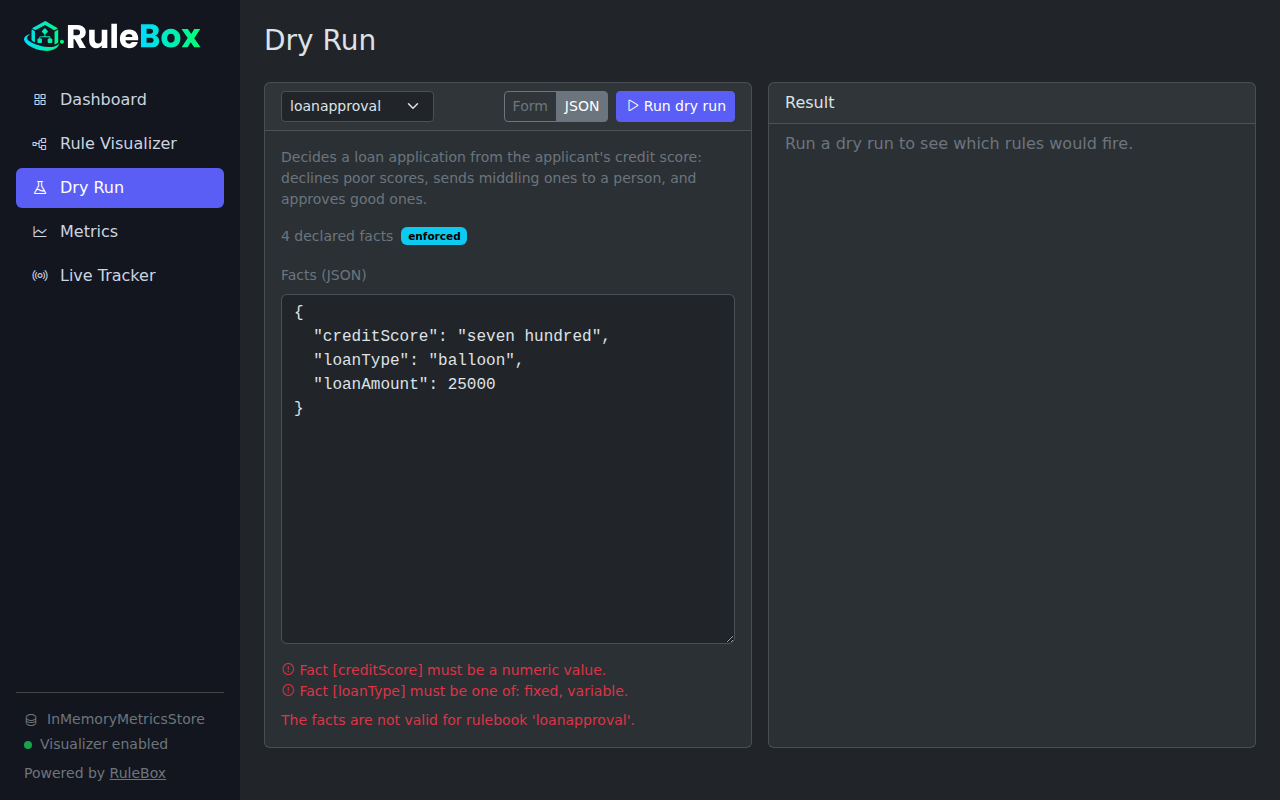

When the rulebook enforces its facts, a dry run with a missing or invalid fact is rejected, and each problem shows next to its field (or under the JSON). The messages name the fact but never repeat its value.

Metrics

Aggregated stats for one rulebook: total evaluations, average duration, completion and error rates, and a count per outcome state. Pick a rulebook and press Refresh to re-query.

The Rule health table lists every rule of the rulebook that has run, with its evaluations, completion rate, error rate, average and maximum duration, and last error. It starts with the highest error rate on top; click any column heading to sort by it (click again to flip the order), for example Avg to find the slow ones.

Under a failing rule's last error, Show errors opens the rule's distinct errors. Each shows its type and message, how many times it happened, when it was first and last seen, the Caused by chain, the BoxLang stack frames, and a Raw Java stack trace you can expand. The Errors and stack traces link on the dashboard and Show errors and stack traces in the chain view open the same panel.

Rule health

Every evaluation of a rule ends in one of the RULE_STATES. For health:

• Completed counts evaluations that finished without throwing: EXECUTED, SKIPPED and STOPPED. A skipped rule did its job (its condition was false), so it counts as completed.
• Failed counts evaluations that threw (FAILED), from a condition, a predicate or an action.
• Completion rate and error rate are completed or failed divided by all evaluations. Both are 0 before the first evaluation.
• Last error is the most recent failure's exception type and message, and when it happened. The exception is still re-thrown to your code.

Errors and stack traces

For every failure RuleBox keeps, trimmed:

The exception's detail is never kept.

The same error is stored once. Each error gets a fingerprint from its type, message, cause chain and the rule's own frames (the code that ran inside the rule, not RuleBook or whatever called it). A repeat of the same error only adds 1 to its count and moves its lastAt, however many times it happens or from which handler. A rule keeps its 10 most recently seen distinct errors.

Stack traces show file paths and function names. That is one more reason to secure /rulebox-visualizer before you enable it outside development.

RuleBox has no per-rule timeouts, so a slow rule shows up through its average and maximum duration rather than as a failure.

Live Tracker

Every rule evaluation, across every rulebook, streamed to the browser as it happens via BoxLang's SSE(). Each row shows the time, rulebook, rule, outcome state, and duration. A FAILED row is highlighted in red with the error type and message under the rule name; click it to expand the cause chain and stack traces. Use Pause to freeze the table while you read it; the table keeps the latest 200 rows.

Limiting live connections

Each open Live Tracker tab holds a stream open, and that pins two server threads for as long as it stays connected. RuleBox therefore caps how many streams can be open at once with visualizer.maxStreams (default 25):

moduleSettings = {
	rulebox = {
		visualizer = {
			enabled    = true,
			maxStreams = 10
		}
	}
}

Once the cap is reached, further requests to stream get an HTTP 503 with { "error": "Too many live tracker connections" } instead of a new stream, and a slot frees up as soon as a tab closes or its connection drops. Keep the cap comfortably below your servlet container's worker thread count so the tracker can never starve the rest of your application. Each stream also buffers at most 1000 events; if a browser stalls and falls behind, its oldest unsent events are dropped rather than letting memory grow.

Metrics persistence

Every rule evaluation is recorded through RuleEventBus@rulebox, which fans it out to two places: the configured metrics store (for the dashboard/metrics screens) and any live subscribers (the SSE tracker). The store is swappable:

moduleSettings = {
	rulebox = {
		visualizer = {
			enabled        = true,
			// A WireBox mapping ID - swap in your own implementation of IMetricsStore@rulebox
			metricsStore   = "InMemoryMetricsStore@rulebox",
			// Only read by SQLiteMetricsStore, if you opt into it below
			datasourceName = "rulebox_visualizer"
		}
	}
}

The default: in-memory

InMemoryMetricsStore@rulebox is the default - zero setup, live broadcast and the dashboard/metrics screens work immediately after enabling the visualizer. The tradeoff: nothing survives a restart. Totals and per-rule metrics are exact running aggregates, while the recent-activity feed keeps only the last 1000 events per rulebook (maxEventsPerRulebook).

Persisting across restarts: SQLite

For metrics that survive a restart, point metricsStore at SQLiteMetricsStore@rulebox instead. It persists events to a rulebox_events table (auto-created on first use) via the bx-sqlite BoxLang module. It requires:

1. bx-sqlite installed (box install bx-sqlite) and registered with your engine so its JDBC driver is available - how you do this depends on your engine/environment, so verify it independently of RuleBox
2. A datasource registered under the name in datasourceName (default rulebox_visualizer), e.g. in Application.bx:

this.datasources = {
	rulebox_visualizer: {
		driver: "sqlite",
		database: "./.database/rulebox_visualizer.db"
	}
}

Neither the module nor the datasource is installed/registered for you - if you opt into this store, you set these up yourself. If bx-sqlite or the datasource isn't available, RuleBox logs it and keeps going: live broadcast still works, nothing gets persisted.

Retention, indexing and the circuit breaker

The SQLite store is hardened for long-running apps. All of these settings live under visualizer and are optional:

• Retention is enforced by a cheap DELETE once every 500 inserts, never on every insert, so the table can briefly exceed the limits between prunes.
• The rulebox_events table has an index on (rulebookName, ruleName, id) for the per-rule metrics queries (created automatically; existing tables get it on the next startup).
• A FAILED event row stores only its error type, message and fingerprint (errorType, errorMessage, errorFingerprint). The error itself, with its causes and traces, is one row per rule and fingerprint in rulebox_errors; a repeat is an upsert that adds 1 to its count. A table created by an older RuleBox gets the new columns and table on the next startup; its existing rows have no error details.
• Retention also applies to errors: retentionDays deletes errors not seen since the cutoff, and each rule keeps its 10 most recently seen errors. Once a rule's last failed event is pruned, it no longer has a last error.
• If writes keep failing (a missing datasource, a locked or full database), the store logs one error when the breaker opens, skips persistence for the cool-down (live broadcast keeps working), then retries once and logs one info line when it recovers. A failed schema create is retried on the next event rather than being swallowed for good.
• Each recorded event is still a synchronous INSERT on the thread that evaluated the rule. That is a deliberate trade-off for simplicity; if it is too slow for your traffic, use the in-memory store or implement IMetricsStore@rulebox with a queue.

Swapping it out

Implement IMetricsStore@rulebox (recordEvent, queryEvents, queryRuleBookSummary, queryRuleMetrics, queryAllRuleMetrics, queryRuleErrors, queryRuleBookNames, reset) and point metricsStore at your WireBox mapping - a Redis-backed store, a real RDBMS table via qb, whatever fits your app.

The interface's docblocks describe each shape. In short:

• A FAILED event passed to recordEvent() carries errorType, errorMessage, errorFingerprint, errorCausedBy, errorStackTrace and errorRawStackTrace. Store each distinct errorFingerprint once per rule and count repeats; RuleHealth::foldError( errors, error, at ) does that for an array. queryEvents() returns errorType, errorMessage and errorFingerprint on FAILED events only.
• Summaries add completed, failed, completionRate, errorRate and avgDurationMs. rulebox.models.metrics.RuleHealth::of( countsByState, totalEvaluations, totalDurationMs ) computes them, so your store reports them the same way.
• Rule metrics also add minDurationMs, maxDurationMs, lastRunAt, and lastError ({ type, message, at, fingerprint }) once the rule has failed.
• queryAllRuleMetrics( rulebookName ) returns the rule metrics of every rule that has run, for the dashboard panels and the Rule health table.
• queryRuleErrors( rulebookName, ruleName, limit ) returns the rule's distinct errors, most recently seen first, each with its count, firstAt and lastAt.

What it doesn't do

The condition tree behind a when()/except() closure isn't introspectable once compiled, so the chain visualizer shows what's inspectable on a live Rule - name, priority, stop(), active window, metrics - not a decompiled condition. Access control is also entirely on you; see above.
